VPX Backplanes
Designed to meet ANSI | VITA46 & VITA 65 the open VPX backplanes, VPS backplanes are designed & manufactured to provide highly flexible & configurable system for aerospace, industrial medical & military applications. It supports 3U or 6U form factor, custom designs are also available to suit customer requirements.
VPX - 3U & 6U Backplanes

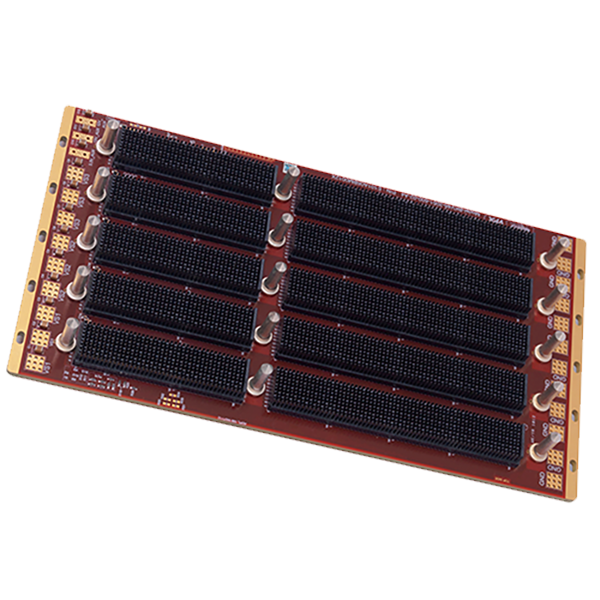

Blaze 3U/6U VPX (Bx series)
VPX is a broadly defined technology utilizing the latest in a variety of switch fabric technologies in 3U and 6U format blades. Designed to meet ANSI| VITA 46 & VITA 65 the open VPX backplanes. VPX backplanes are designed & manufactured to provide highly flexible & configurable system for aerospace, industrial medical & military applications. It supports 3U or 6U form factor, custom designs are also available to suit customer requirements.
Technical Specification
- Compliant with VITA 46.0 & VITA 65 Open VPX specification
- 0.8” / 0.85” / 1.0” Card Pitch
- 3U or 6U Form Factor
- Slot / Backplane / Module Profile as per VITA65
- PCB Layer: 12/16
- Backplane Connectors: High Speed MULTI-GIGRT-2
- Flexible keying and alignment mechanism
- Power connections at rear for VS1, VS2, VS3, AUX & Ground
- Keying & Alignment Mechanism
- Extended Operating Temperature: -40°C to 85°C
- Custom Designs
Info Request
VPX VME Hybrid

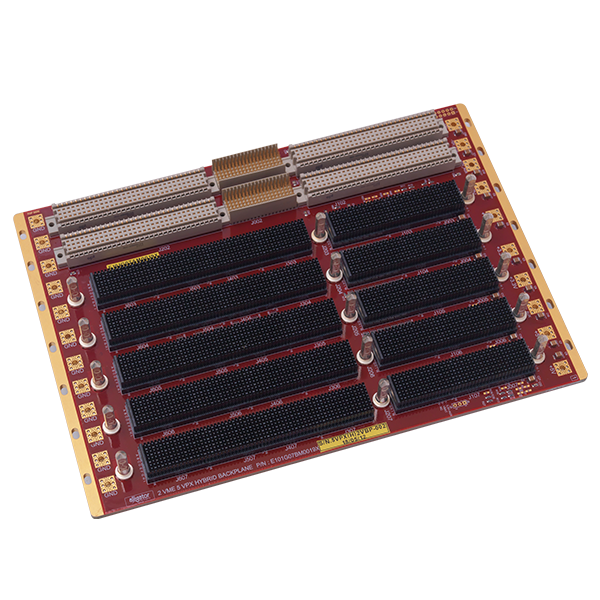

Blaze Hybrid (Bi series) - Hybrid Backplanes
VME VPX hybrid backplane is compliant with VITA 46 & VITA 65 open VPX specification. It is designed to achieve superior power distribution & zero cross talk. VPX VME hybrid switchless full mesh technology backplane features point to point mesh connection & do not require switch cards for prototyping.
Technical Specification
- As per ANSI/VITA 1.1-1997
- Compliance with VITA 46.0 & VITA 65 Open VPX specifications
- VME-VPX Hybrid Backplane
- Full Mesh Technology
- M3 Power Taps
- 12 layered PCB
- 0.8 & 1.0” Slot Pitch
- Switchless Point-to-Point
- Flexible keying and alignment mechanism
- With geographic address pins
- Superior Power Distribution
- High Speed P0 MultiGig RT2 Connector for VXS
- PCB FR-4/Rogers
- Zero Cross-talk
- Extended Operating Temperature: -40°C to 85°C
- Custom Designs
Info Request
VITA 67

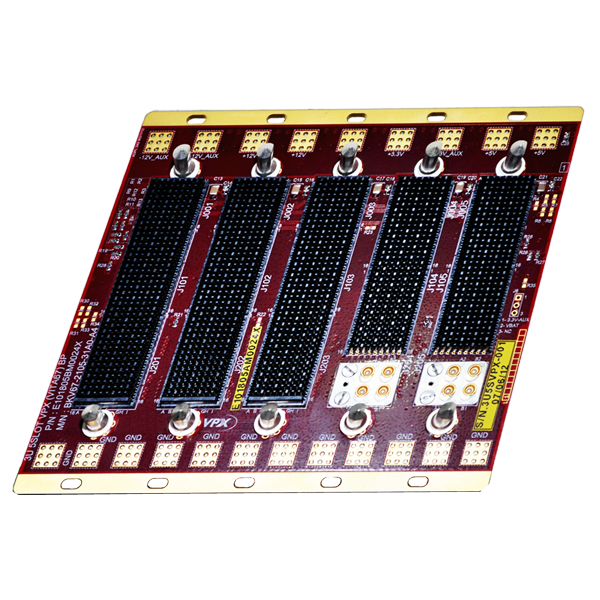

VITA 67 Backplane
VPX VITA 67 is a high performance platform that brings in Analog/RF interfaces directly into the VPX based Signal processing / computing applications. The VITA 67 architecture enables coaxial /RF interconnects directly to the backplane and the cards that interface the backplane. The rear-panel coaxial interface enables the quick disconnect and replacement of a card, thus meeting crucial Mean-Time-To-Repair (MTTR) requirements for military systems. With a rear-panel coaxial interface, the card can be replaced within a minute.
Technical Specification
- VITA 67 Backplane provides High Speed Analog/RF Signal directly to the backplane
- VITA 67 Backplane enables the use of high-speed serial switch fabric technologies such as Ethernet, PCI Express, sRIO
- VITA 67 Backplane is available in 3U, 6U, or virtually any other custom configuration needed
- Robust and rugged high speed solution for RF/Analog Signals
- Quick replacement of modules providing lower Mean-Time-To-Repair (MTTR)
- Flexible keying and alignment mechanism
- Geographical address pin.
- Improved modularity and scalability of complex architectures
- Coaxial interconnects in modules can significantly improve isolation from interference and noise.
