Helios
Power Supply
Trident's power supply products are designed to meet various environmental conditions and also provide options to suit custom specific power requirements. Variant available for industrial, defence & aerospace environmental conditions with air cooled or conduction cooling power supplies.

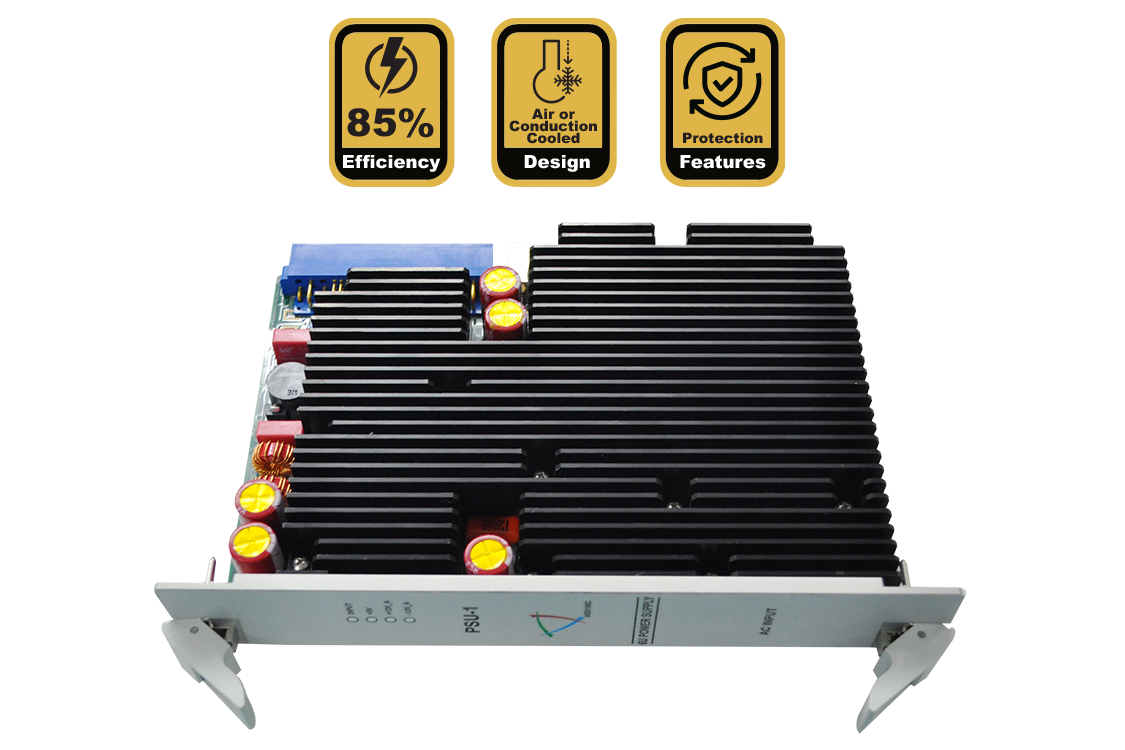

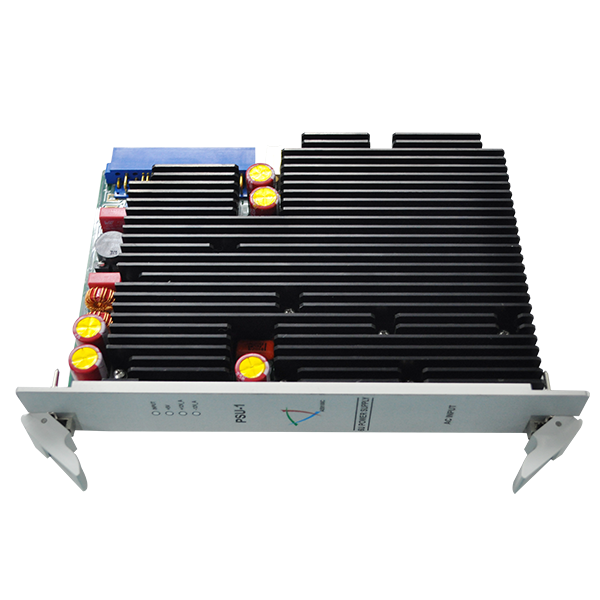

Helios Vita62
3U / 6U Rugged Power Supply
The VITA 62, Power supply offers 85 % efficiency with air cooled or conduction cooled design. VITA62 power supply comes with OV, UV & OC Protection.
Technical Specification
- Slot or Brick type power supply
- Dual or Single Slot 3U/6U Rugged PSU
- Brick type with cold plate option
- IEEE 1101.1/2x compliant front with EMI, Guide pins
- AC / DC Input options
- Available in 250W / 400W / 650W / 1200W Output’s
- Reverse polarity, OV, UV & OC Protection
- Remote Sense for 5V & 3V3
- Individual current limiting
- Power line filter as per MIL-STD-461E
- 85% Efficiency (Typ)
- Air Cooled or Conduction Cooled Design
- Custom PSU Design
- MIL-STD-704E compliant
Info Request

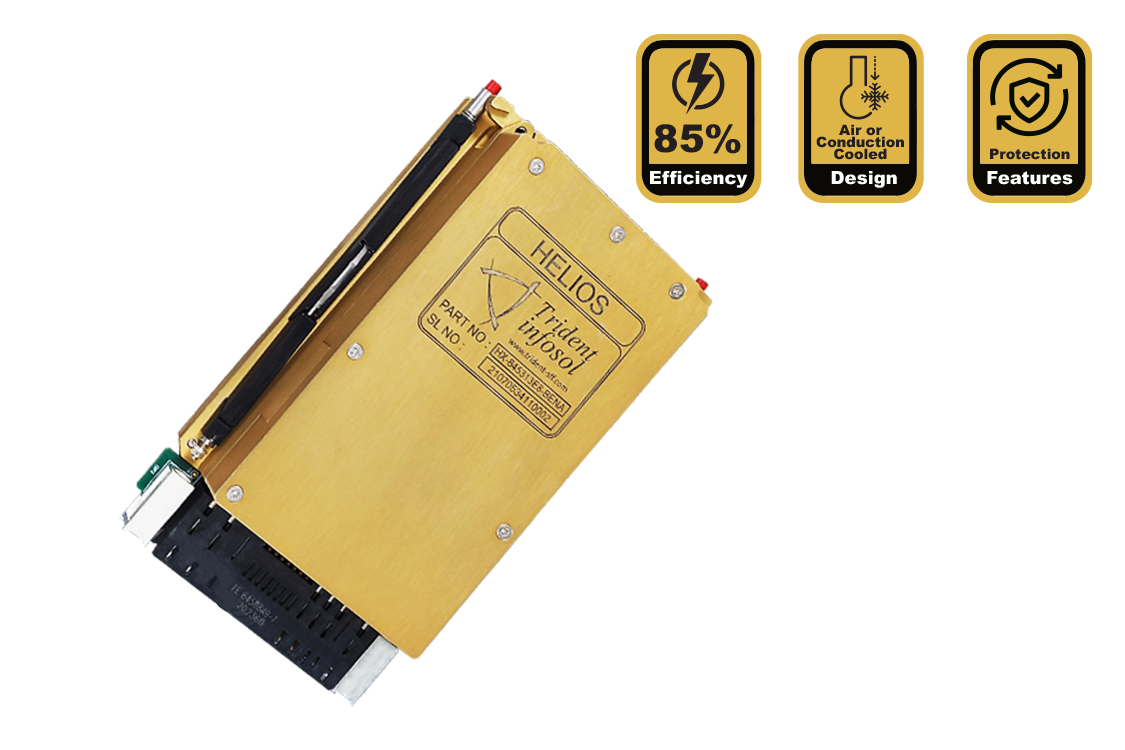

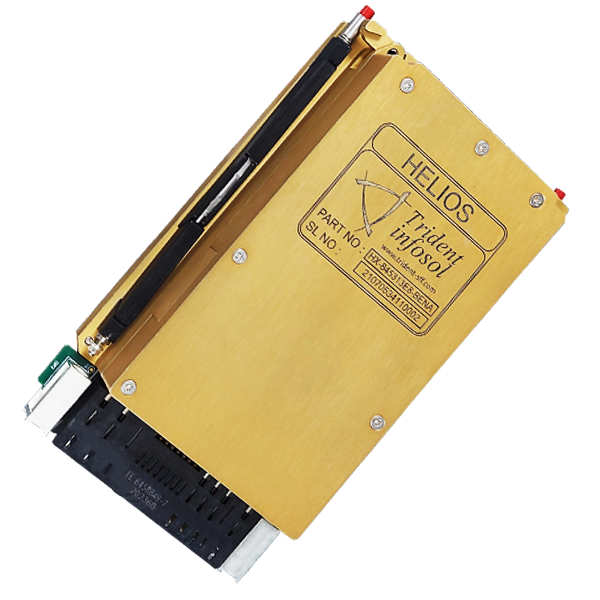

Helios AC/DC
Plug-in Power Supply
Technical Specification
- Slot or Brick type power supply
- Dual or Single Slot 3U/6U Rugged PSU
- Brick type with cold plate option
- IEEE 1101.1/2x compliant front with EMI, Guide pins
- AC / DC Input options
- Available in 250W / 400W / 650W / 1200W Output’s
- Reverse polarity, OV, UV & OC Protection
- Remote Sense for 5V & 3V3
- Individual current limiting
- Single or multiple options
- Power line filter as per MIL-STD-461E
- 85% Efficiency (Typ)
- Air Cooled or Conduction Cooled Design
- PICMG 2.11 Compliance (P47)/ Custom Form Fit options
- Custom PSU Design
