Raptor

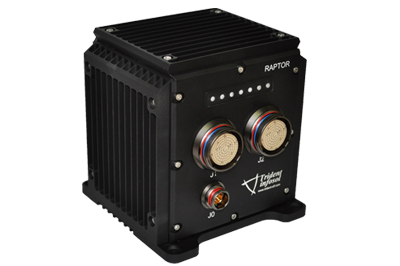

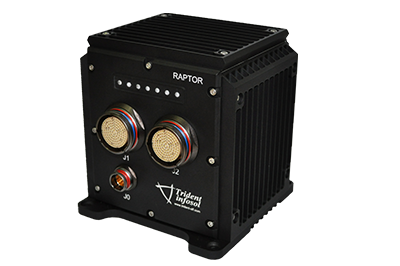

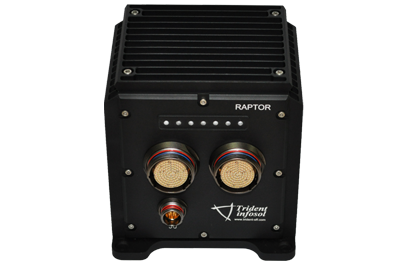

Raptor - X5
VNX+ Mission Critical Integrated System
The VNX+ (VITA 90) System is a compact, rugged embedded platform tailored for mission-critical aerospace and defense applications. It supports 19mm compute, I/O, and power modules on a modular 5-slot backplane, offering high-performance processing, advanced I/O, and reliable operation in extreme environments.
Technical Specification
- Backplane Capacity: Modular 5-slot design
- Primary Compute: Intel® Core™ i7-1185GRE (with 16GB LPDDR4x & 64GB NVME)
- GPGPU Option: NVIDIA Orin NX (with 16GB & 120GB Storage)
- Dimensions: 178x122x174 mm / 7.00x4.80x6.85 inches
- Weight (Standard): ~3.7 KG / ~8.1 lbs (*Configuration Dependent)
- Operating Temp: -40°C to +71°C (Configuration Dependent / with air-assist)
- Power Input: 28 VDC
- Standards: MIL-STD-810H, MIL-STD-461G, MIL-STD-704F/1275F
Info Request

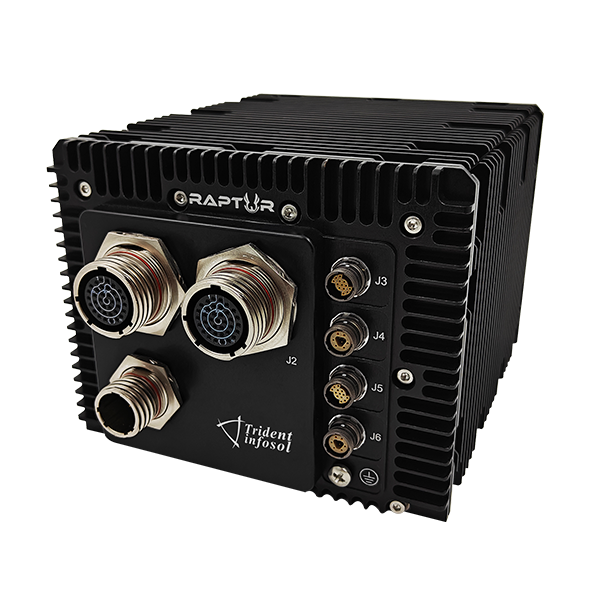

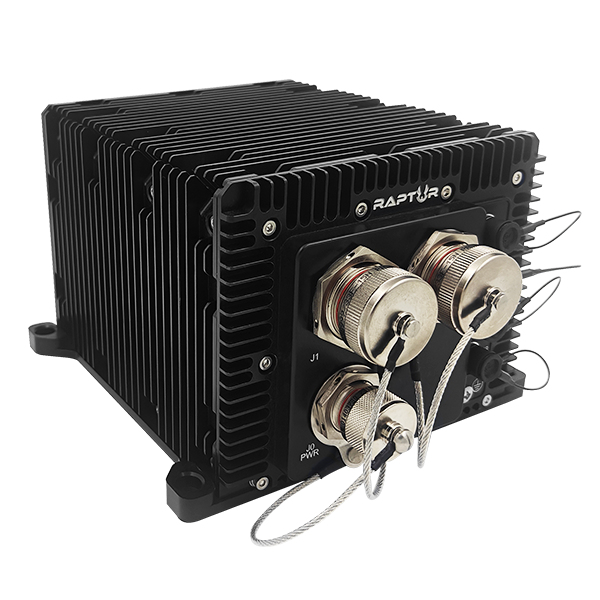

Raptor-R7x
VNX (VITA-74) or VNX+ (VITA 90) Rugged Small Form Factor
The Raptor is a rugged, small form factor, Commercial Off the Shelf (COTS) computer based on the VNX+ standard, the Small Form Factor standard selected by the Open GroupTM- SOSA Consortium, the standards body responsible for establishing guidelines for selection and acquisition of C5ISR components and systems. Derived directly from VNX(VITA 74) OpenVPX (VITA65), VNX+ is part of the continued evolution of the VNX standard and is specifically designed for small form factor deployments.
Technical Specification
- Backplane Capacity: Modular 7-slot design
- Primary Compute: Intel® Core™ i7-1185GRE (with 16GB LPDDR4x & 64GB NVME)
- GPGPU Option: NVIDIA Orin NX (with 16GB & 240GB Storage)
- Dimensions: 130x193.5x133 mm / 5.10x7.60x5.25 inches
- Weight (Standard): ~4.2Kgs / ~9.25 lbs (*Configuration Dependent)
- Operating Temp: -40°C to +71°C (Configuration Dependent / with air-assist)
- Power Input: 28 VDC
- Standards: MIL-STD-810H, MIL-STD-461G, MIL-STD-704F/1275F
Info Request

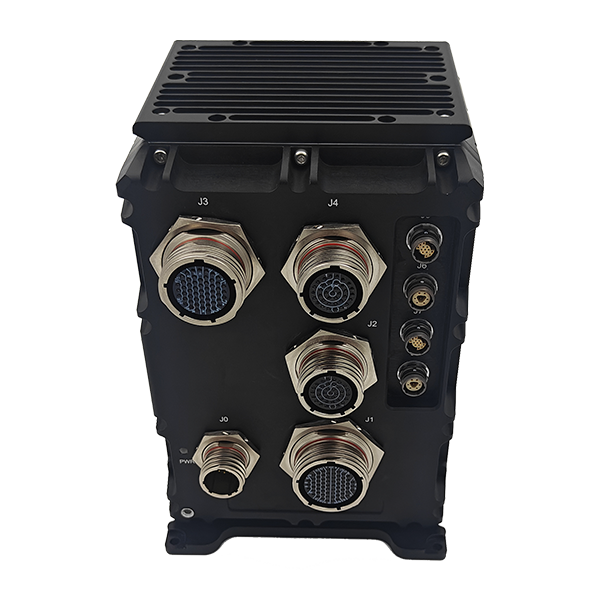

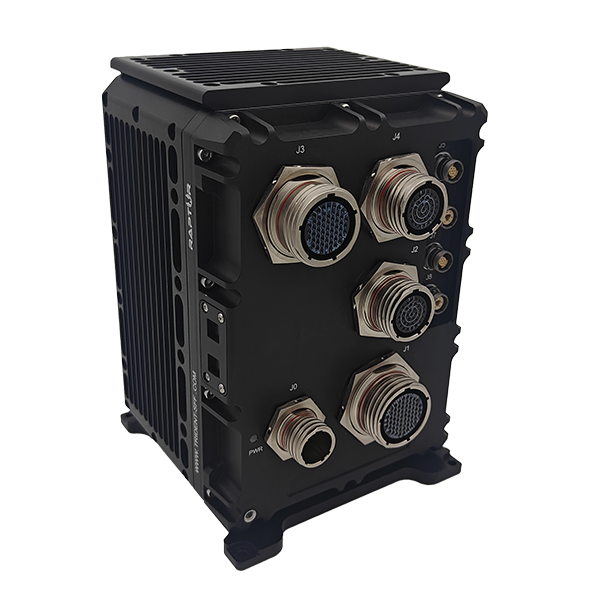

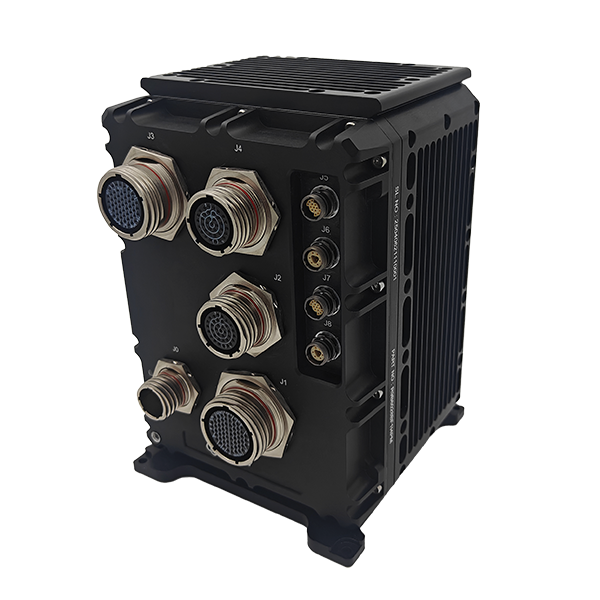

Raptor-X7
VNX+ Mission Critical Integrated System
The VNX+ (VITA 90) System is a compact, rugged embedded platform tailored for mission-critical aerospace and defense applications. It supports 19mm compute, I/O, and power modules on a modular 7-slot backplane, offering high-performance processing, advanced avionics I/O, and reliable operation in extreme environments.
Technical Specification
- Backplane Capacity: Modular 7-slot design
- Primary Compute: Intel® Core™ i7-1185GRE (with 16GB LPDDR4x & 64GB NVME)
- GPGPU Option: NVIDIA Orin NX (with 16GB & 240GB Storage)
- Dimensions: 130x193.5x133 mm / 5.10x7.60x5.25 inches
- Weight (Standard): ~4.2Kgs / ~9.25 lbs (*Configuration Dependent)
- Operating Temp: -40°C to +71°C (Configuration Dependent / with air-assist)
- Power Input: 28 VDC
- Standards: MIL-STD-810H, MIL-STD-461G, MIL-STD-704F/1275F
