ATR Chassis
Trident offers a wide range of ATR chassis that are convection, conduction cooled, forced air conduction cooled and liquid cooled. Built with aero-grade aluminum, the chassis are suitable for rugged onboard/mobile applications and can operate under extreme temperatures, dust and humidity. The chassis comes with different sizes and are equipped with various backplane options vis-à-vis 3U/6U (VPX / cPCI/ VME) and custom designs.
The rugged ATR chassis are MIL compliant MIL STD 810F & MIL STD 461E for immediate deployment in the field of military, aerospace & UAV applications that demands high performance solution. These ATR chassis are designed & built to sustain harsh environmental condition.
Choosing the right cooling technology plays a crucial role in defining the performance of the system. The commonly used cooling option available to meet rugged system design requirement are represented below.

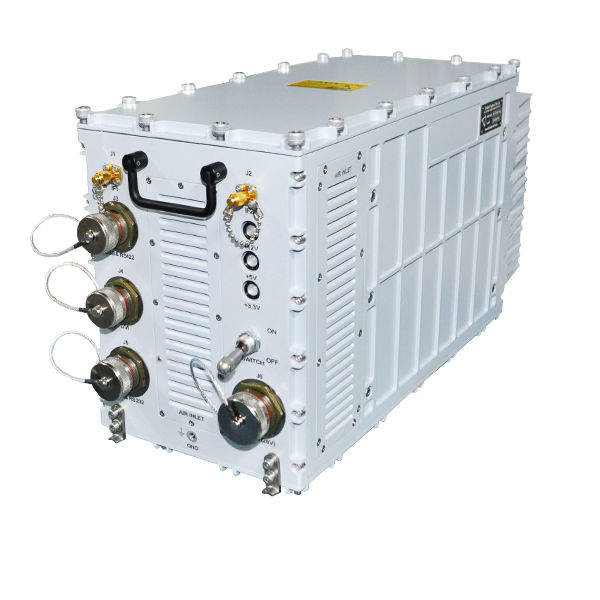

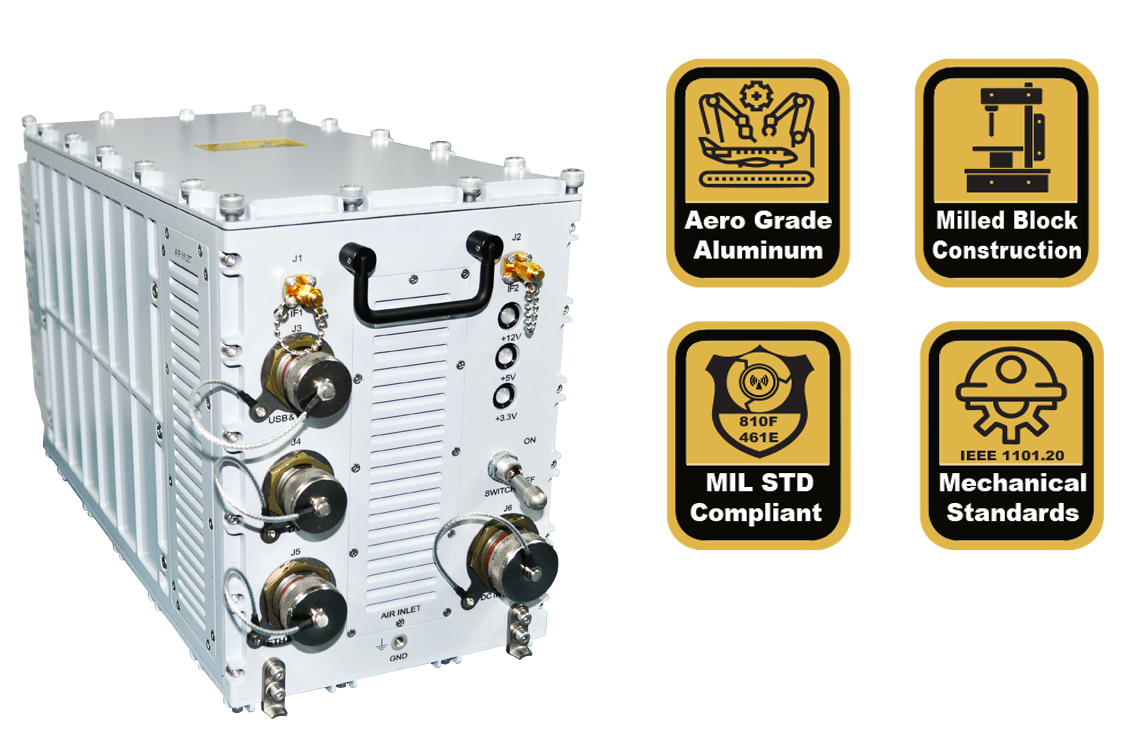

Conduction Cooled ATR Chassis
Rhino - 3U/6U Conduction Cooled
Conduction cooled ATR chassis are used for very harsh military/ airborne application. The heat generated with in the enclosure is strategically Conducted through to the outer surfaces and ambient air is then used to cool these surfaces.
Technical Specification
- Airborne, shipborne and ground deployment
- 3U/6U Short/Short, Short/Long, Tall/Short, Tall/Long & Dwarf to 1 ½ ATR Chassis
- 3U/6U(VPX / cPCI/ VME) Backplane Options
- 1ϕ / 3ϕ AC or 28v DC Input power supply up to 1500w
- Input Transients as per MIL-STD-704E / MIL-STD-1275D
- EMI/RFI Power Line Filtering
- No cable Harness
- MIL-C-38999 type Connectors for power and I/O Signals at rear
- Option available with ARINC 600 style connectors
- Hard mount, Arinc404 and Custom Design options available
Info Request

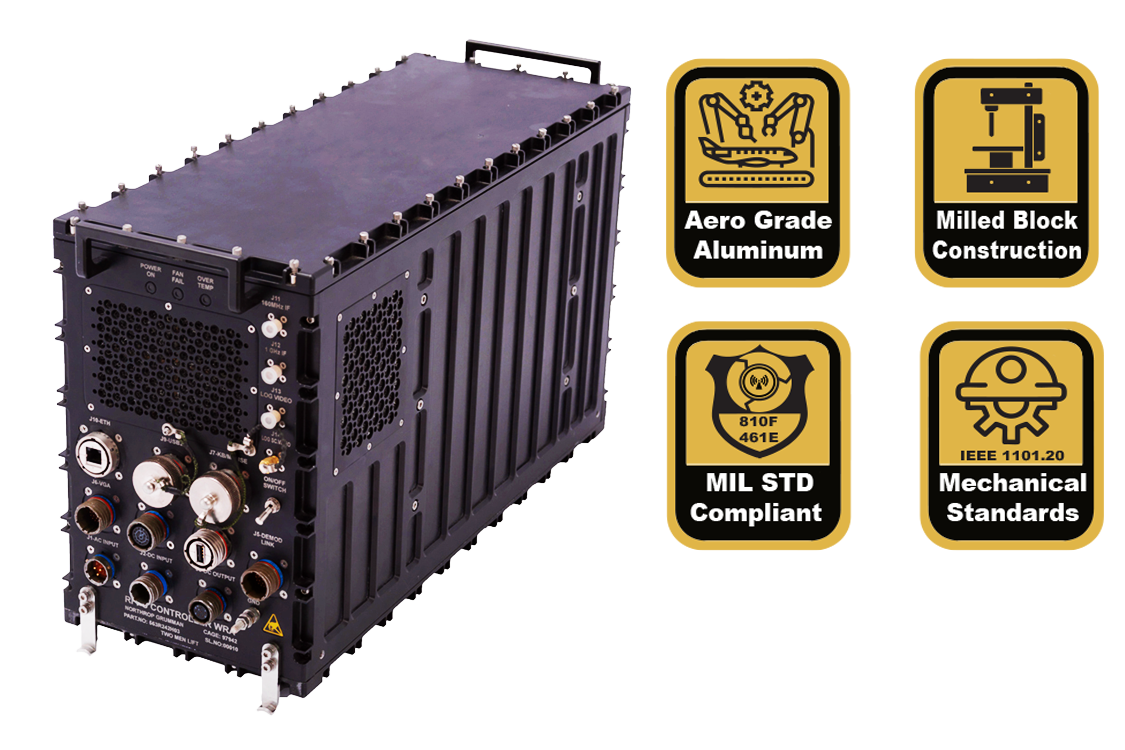

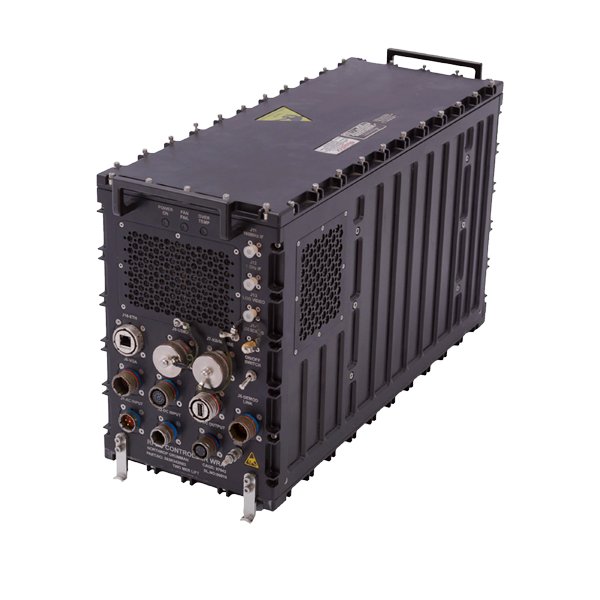

Air/Convection Cooled ATR Chassis
Unicorn - 3U/6U Air / Convection Cooled
Convection cooled ATR, Forced air moving across system boards, power supplies and other system components. Moving air absorbs system heat directly from board components which is then exhausted out of the enclosure to the ambient environment. The cooling concept of all Convection cooled ATRs is optimized by thermal analysis.
Technical Specification
- Airborne, shipborne and ground deployment
- 6U High ATR Chassis
- 6U,upto 15 Slots Card Area
- 6U (VPX / cPCI/ VME) Backplane Options
- 1ϕ / 3ϕ AC or 28v DC Input power supply up to 1500w
- Input Transients as per MIL-STD-704E / MIL-STD-1275D
- EMI/RFI Power Line Filtering
- Low weight, ideal for applications where the weight is critical
- No cable Harness
- MIL-C-38999 type Connectors for power and I/O Signals at rear
- Option available with ARINC 600 style connectors
- Hard mount, Arinc404 and Custom Design options available
Info Request

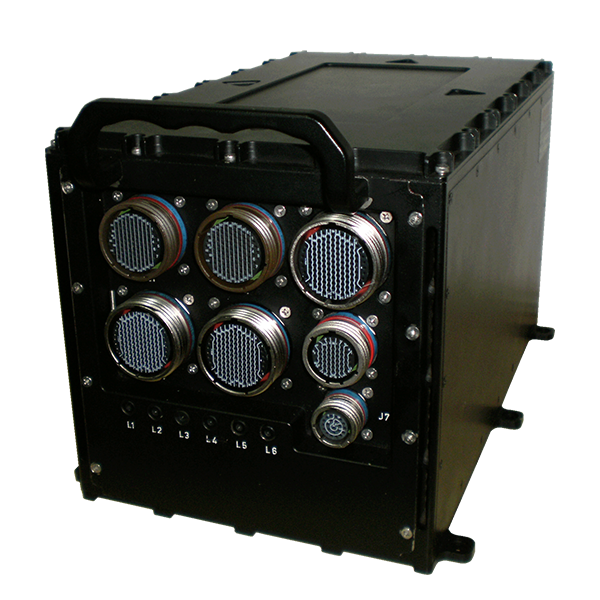

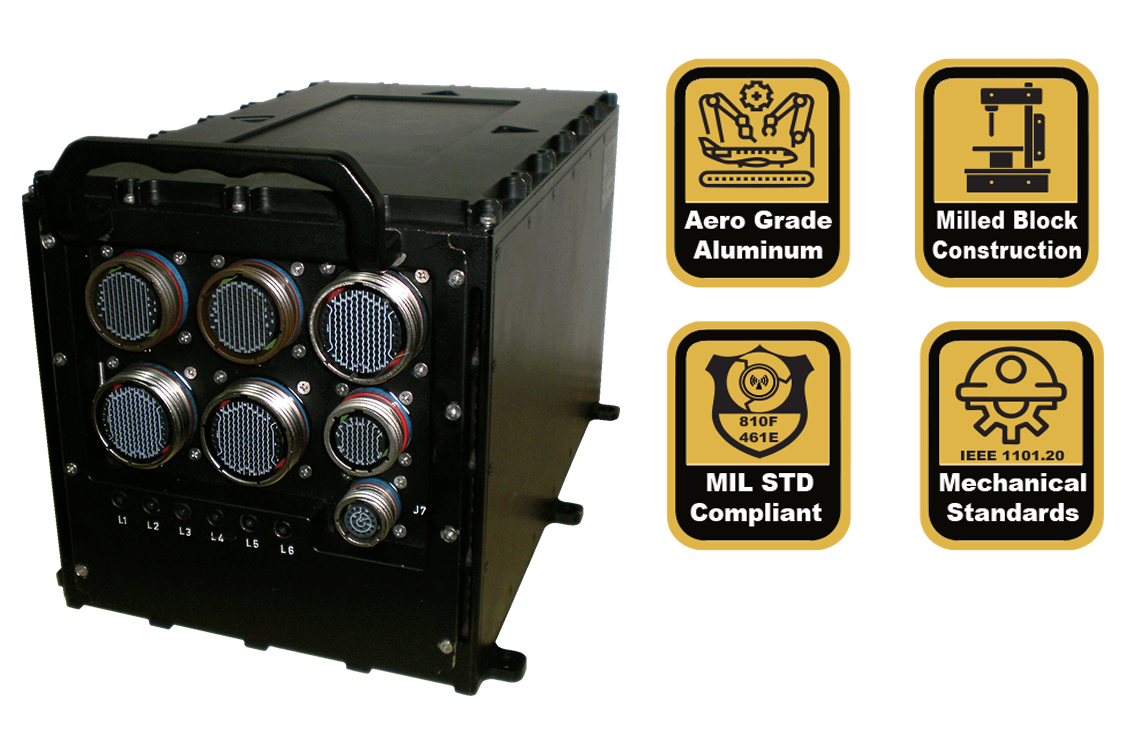

Forced Air Conduction Cooled ATR Chassis
Rhino Forced Air – Conduction cooled ATR Chassis
Here ambient air is forced by the use of fans over heat exchanger which in turn cools the conduction boards. Ideally suited for the thermal measurement and effective deployment of conduction cooled military grade hardware.
Technical Specification
- Airborne, shipborne and ground deployment
- 3U/6U High ATR Chassis with upto 14 Slots Card Area
- 3U/6U(VPX/cPCI/VME) Backplane Options
- 1ϕ / 3ϕ AC or 28v DC Input power supply (up to 1500w)
- Input Transients as per MIL-STD-704E / MIL-STD-1275D
- EMI/RFI Power Line Filtering
- No cable Harness
- Option available with ARINC 600 style connectors
- MIL-C-38999 type Connectors for power and I/O Signals at rear
- Hard mount and Custom Design options available
- CPU: Xeon W-11865MRE (8C/16T)
- Memory: up to 64 GB DDR5 RAM
- Storage: up to 1980GB with M.2 SATA Interface
- I/O’s: Standard, Build Option Available
- Dimensions (±1mm): 217mm x 260mm x 105mm
- Weight: ≤ 4.5 to 4.9 Kgs. (Configuration Dependent)
- Power: 28 VDC @ 25-80 Watts (Configuration Dependent)
Info Request

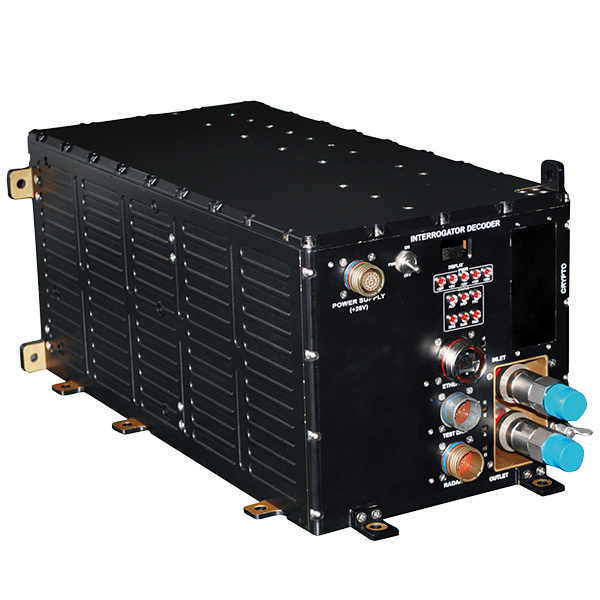

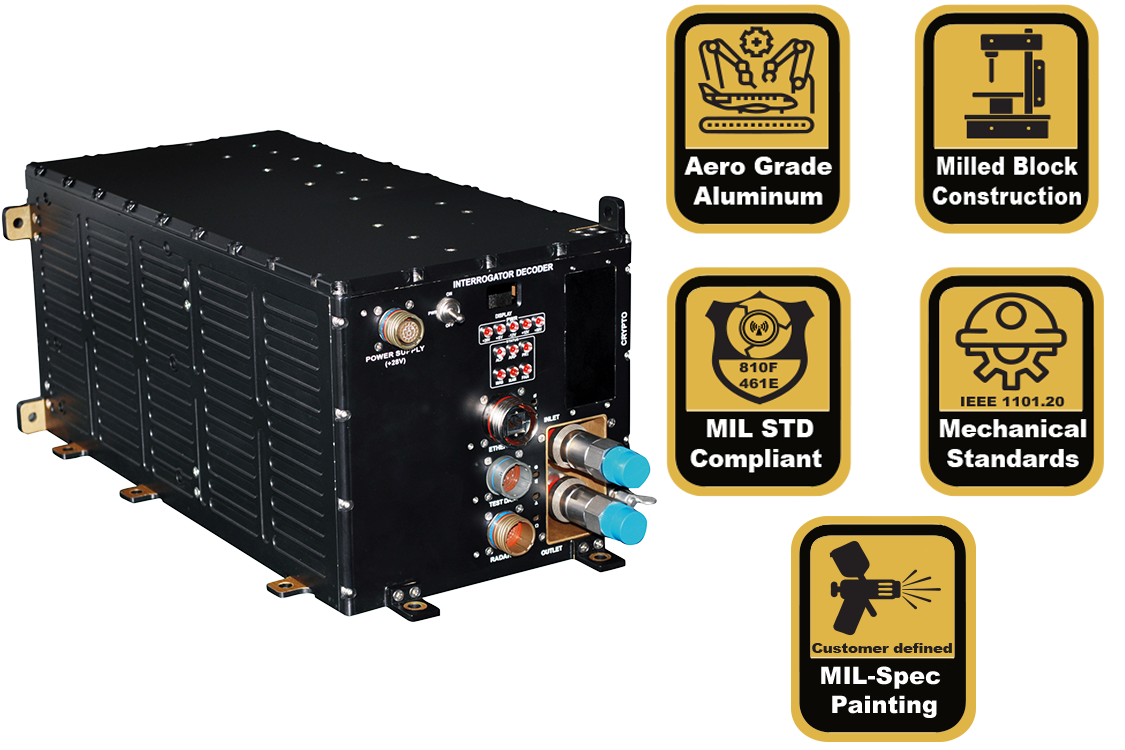

Liquid Cooled ATR Chassis
Rhino - 3U/6U Liquid Cooled
Staying cool is not easy in many of today’s densely populated embedded computing systems, to get the heat out can sometime call for some liquid refreshment. Tridents rugged liquid cooled ATR chassis offer dual liquid cooled side walls for significantly better cooling. Liquid cooled chassis are used in military and aerospace applications and other high performance applications because they offer excellent heat transfer in ruggedized, light weight package.
Technical Specification
- Airborne, shipborne and ground deployment
- 3U/6U High ATR Chassis with upto 15 Slots Card Area
- 3U/6U(VPX/cPCI/VME) Backplane Options
- Single/dual cooled side walls
- 1ϕ / 3ϕ AC or 28v DC Input power supply (up to 1500w)
- Input Transients as per MIL-STD-704E / MIL-STD-1275D
- EMI/RFI Power Line Filtering
- No cable Harness
- MIL-C-38999 type Connectors for power and I/O Signals at rear
- Option available with ARINC 600 style connectors
- Hard mount and Custom Design options available
