VNX+ - L2 / L3 Managed Ethernet Switch

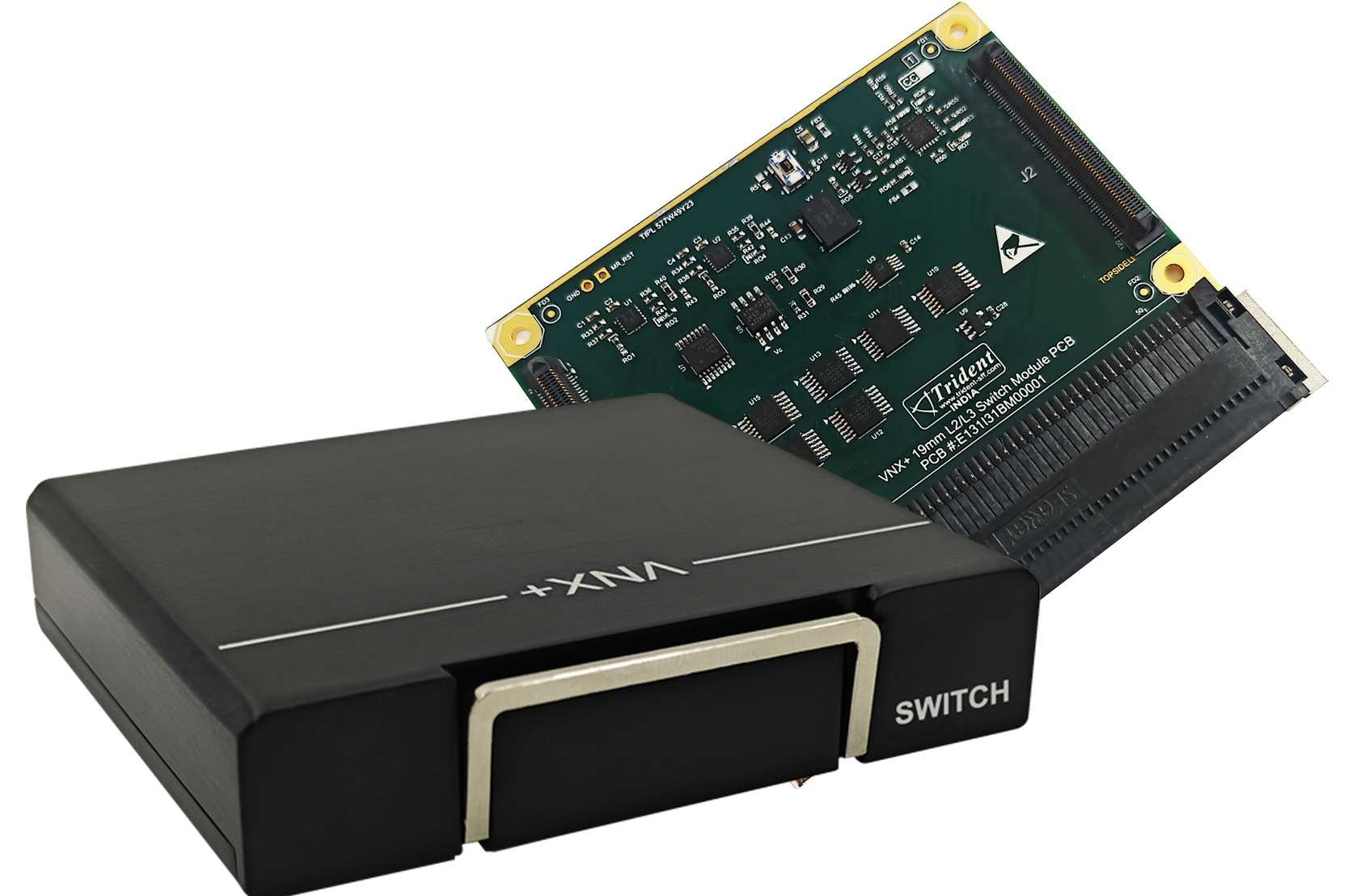

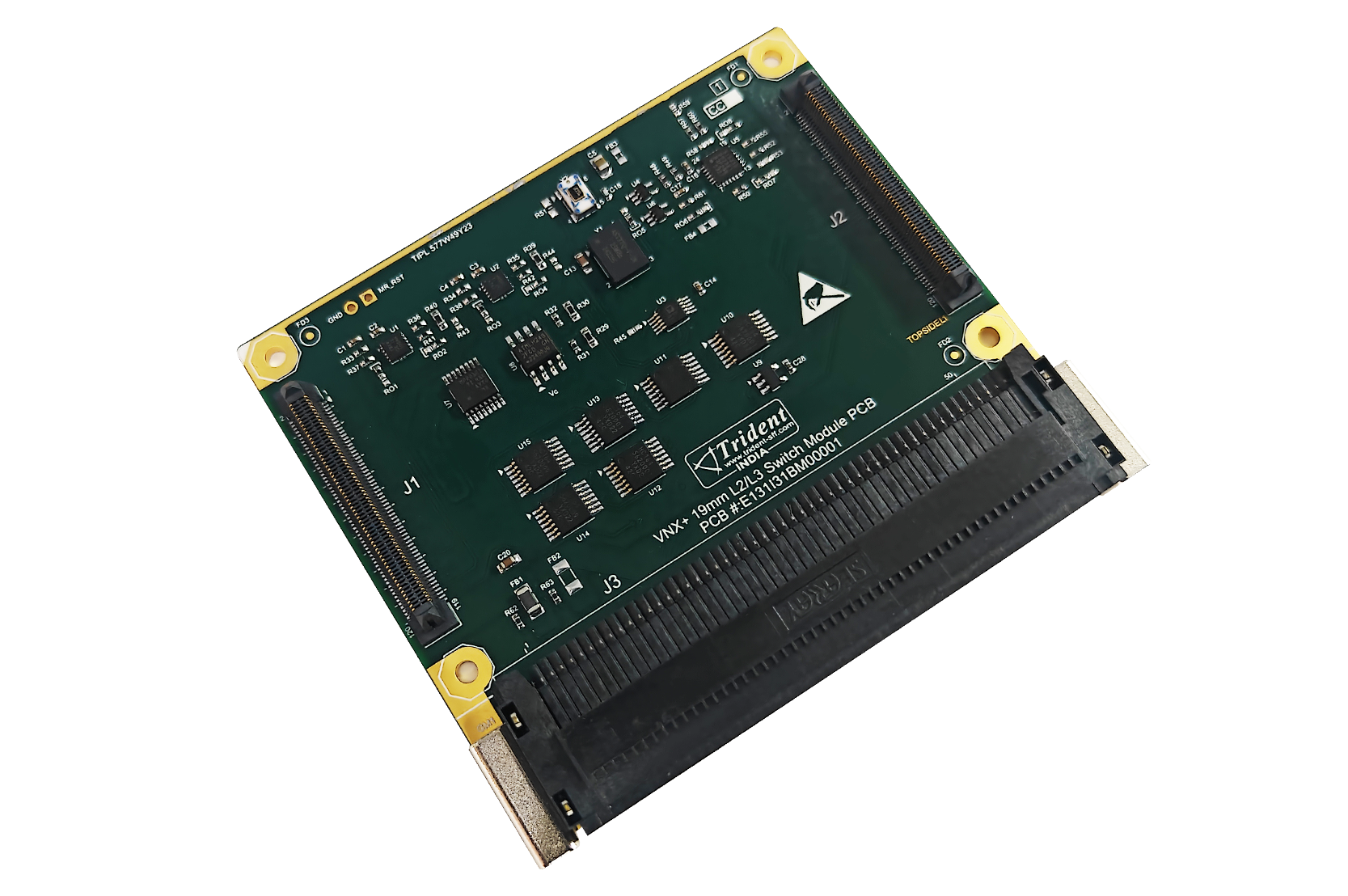

Netspyder VX VNX+ Switch
The VNX+ Switch module is a rugged and compact Ethernet switch module that can be used in a variety of applications, including Onboard avionics and Onboard aerospace, defense, industrial automation, CubeSat, etc. The module provides 8 ports of 10/100/1000 Mbps and 3x QSGMII for expansion, thus with an expansion board it can support up to 24 ports. It also comes with 2 ports of 10 Gbps SFI.
Technical Specification
- All the I/O’s & Power are routed on 400Pin Searay Connector as per VITA90.3 Standard.
- 8x GigE Ports (MDIO) on VNX+ Switch Module
- 3x QSGMII Ports for 8 or 12-Port Expansion via optional expansion module (to be ordered separately)
- 2x 10GbE Ports
- 2x SFI Drive with 400-Pin with Zero-Aperture Or 2x MT Optical Interfaces with 320-Pin and Half-Aperture
- 1 x RS232 Console
- Ethernet Indication signals
- Dimensions: 89mm(W)x19mm(H)x78mm(D)
- Power Input: +3.3Vdc & +5Vdc
- Power: 15 - 20 Watts typ. (configuration dependent)
