Power Interface Board
The Power Interface Boards are separate boards for the power section of the backplane. They are used to facilitate pluggable power supplies, headers, and utility connectors.

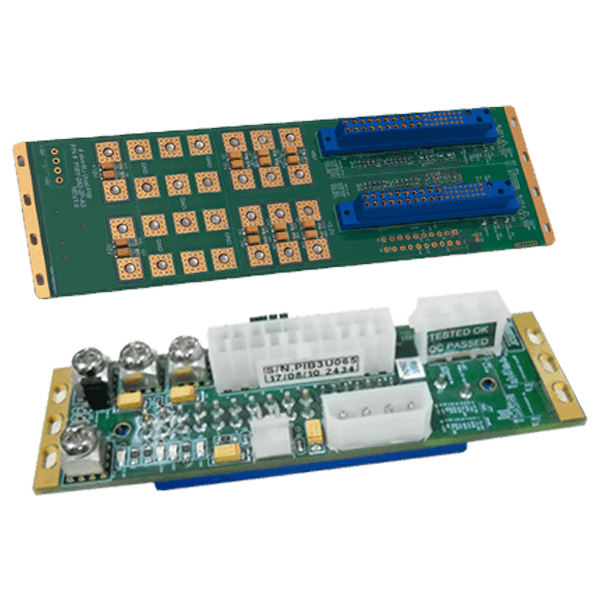

Blaze 3U/6U Power Interface Board(Bp series)
The Power Interface Boards are separate boards for the power section of the backplane. They are used to facilitate pluggable power supplies, headers, and utility connectors. The standard backplane lines utilize power taps and power studs, which are wired to the power supplies.
Technical Specification
- As per ANSI/VITA 1.1-1997
- Designed to meet power interface specification as per PICMG 2.11
- Designed to Plug up to 1200Watts PSUs
- 3U/6U, Dual slot PIB/ Quad slot PIB
- AC / DC input
- Dual Positronics P47 Connector Interface for Plug-in PSUs
- Output Power Bugs with Distribution at rear
- IEEE1101.10 Mechanical Standards
- FR4, Minimum 10 Layers PCB
- Extended Operating Temperature: -40°C to 85°C
- Custom Design
