VXS Backplanes
ANSI standard (ANSI/VITA 41)
VXS, is an ANSI standard (ANSI/VITA 41) that improves the performance of standard parallel VMEbus by enhancing it to support newer switched serial fabrics. The base specification (ANSI 41) defines all common elements of the standard, while "dot"-specifications (ANSI 41.n) define extensions which use specific serial fabrics (such as PCI Express, RapidIO, StarFabric and InfiniBand) or additional functionality.

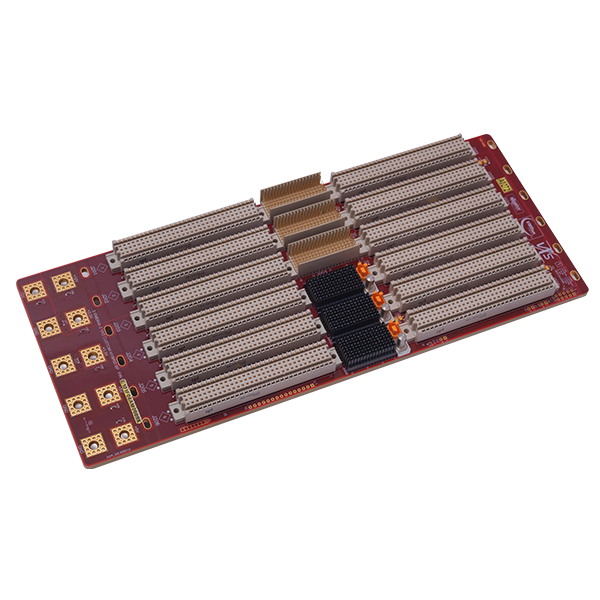

Blaze VXS (Bs series) - VXS Backplanes
VXS is backward compatible with VMEBus. It is defined by the VITA (VME International Trade Association) working group.
Technical Specification
- As per ANSI/VITA 1.1-1997
- Hybrid VXS + VME64x Backplane
- Conforms to ANSI/VITA41.x Core Specifications
- 03 VXS Slots + 03 VME64x Slots Backplane
- Full Mesh
- Active BUSGRANT, IACK daisy chain
- 6U Form Factor
- 12 layered PCB
- Point-to-Point connection – No need of switch card
- Fabric over Multi-Gig RT2 connector
- PCB FR-4/Rogers
- Excellent Power Distribution
- Air and Conduction cooled Payload cards support
- Extended Operating Temperature: -40°C to 85°C
- Custom Designs
