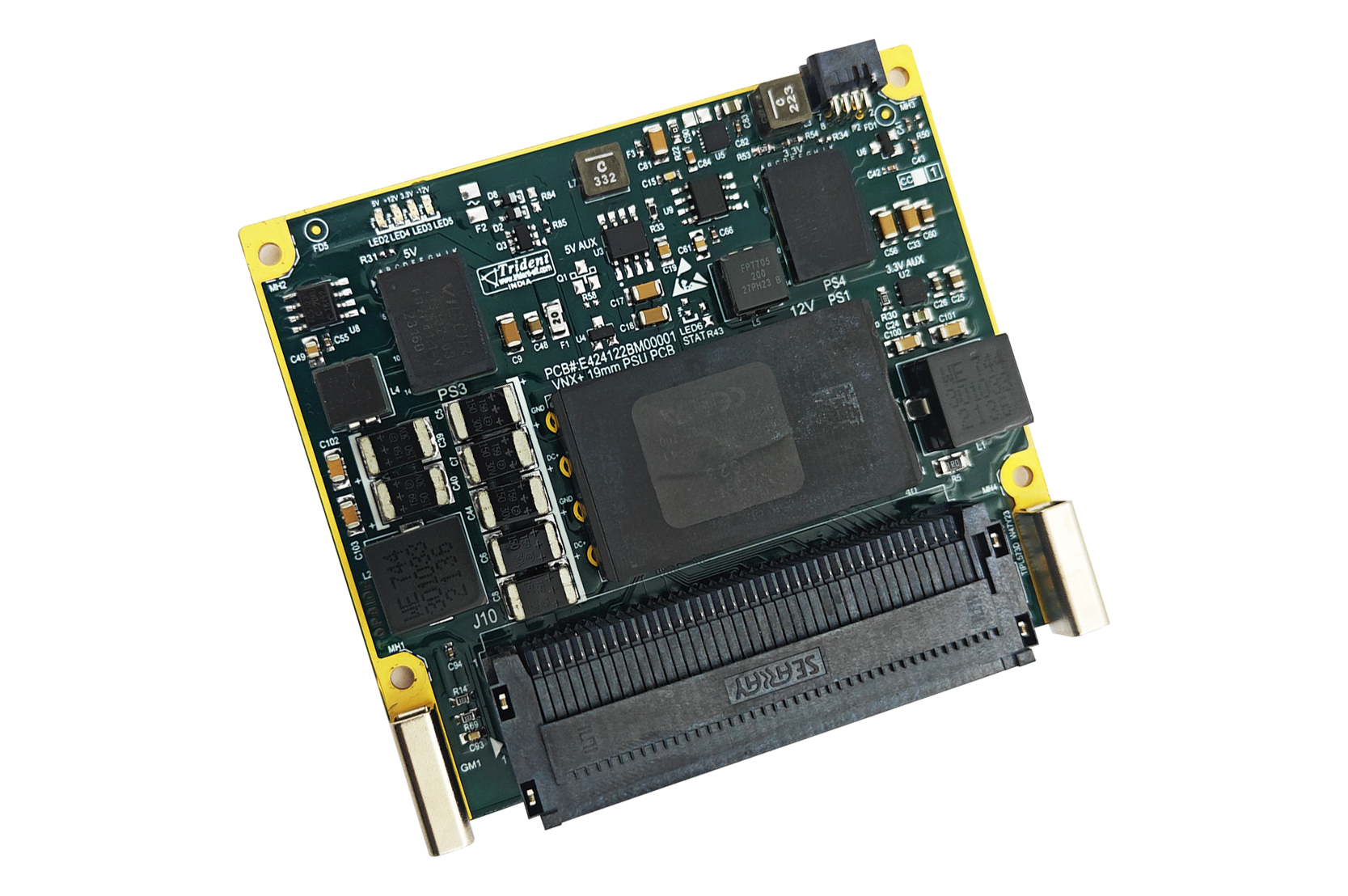

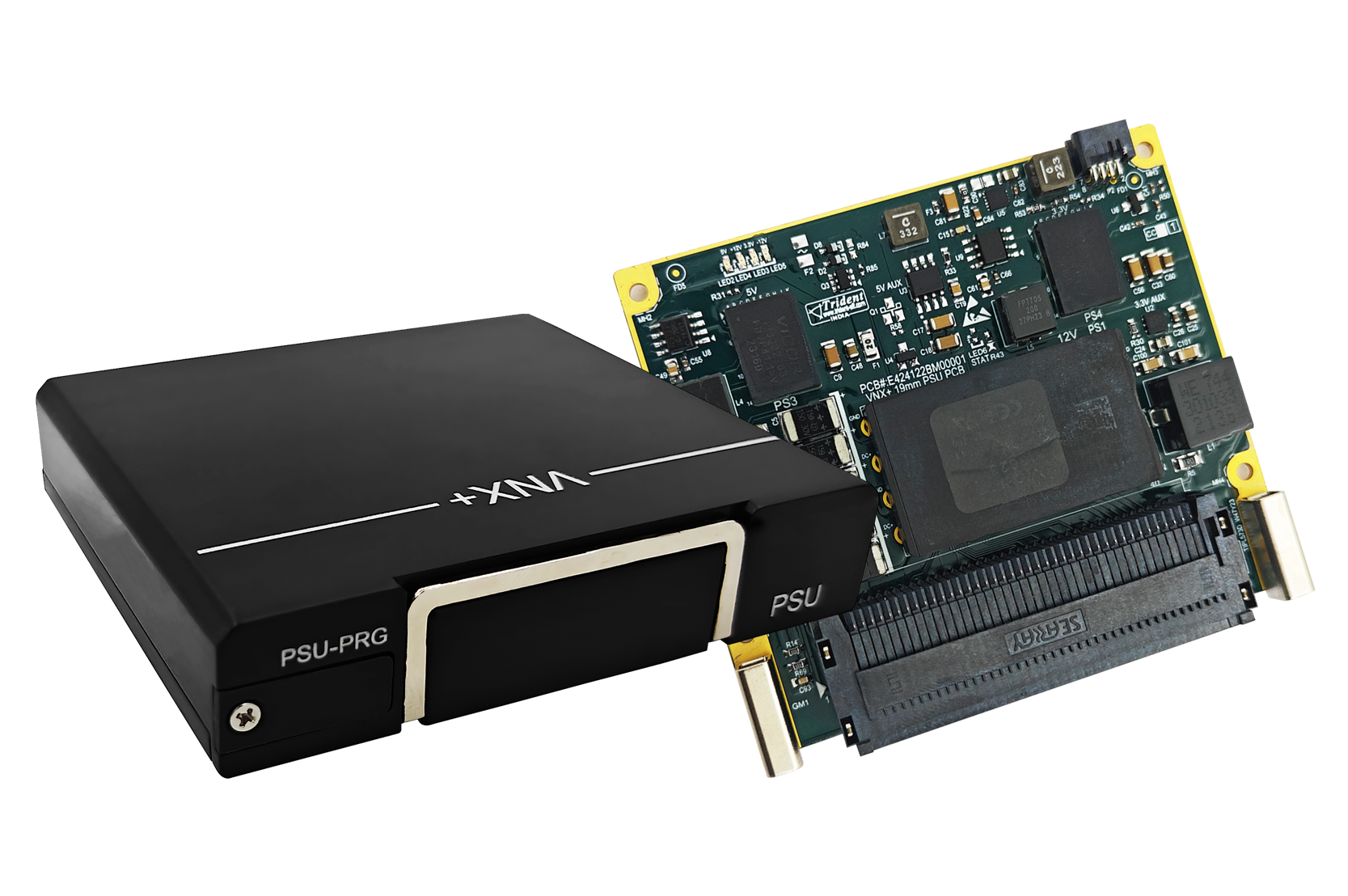

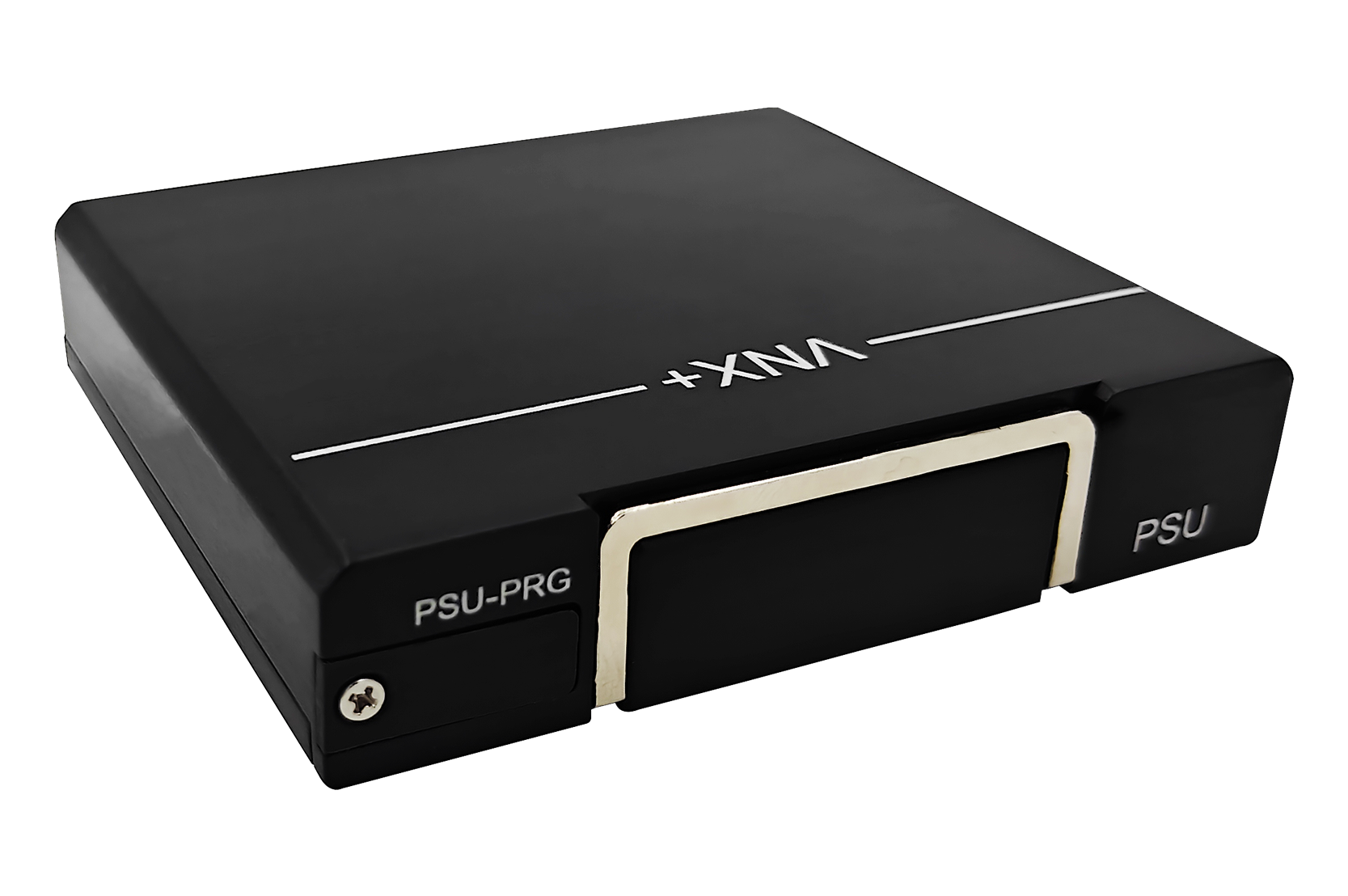

HELIOS VNX+ PSU
Model HRx – VNX+ Conduction Cooled PSU
The Helios Series VNX+ Power supply products are designed to meet various environmental conditions and provide options to suit custom specific power requirements. VNX+ Variant is available for industrial, defense & aerospace environmental conditions with conduction cooling power supplies.
Technical Specification
- Dimensions: 89x79x19 (LxHxW in mm)
- Input Voltage: +12 Vdc to +32Vdc (+28VDC Nominal)
- Output Voltages: +5V
6A
10A
3A+3.3V
6A
6A
6A+12V
6A
2A
8A-12V
0.3A
0.3A
0.3A - Output Power: (Max) 90 Watts (Limited by Cooling)
- VITA Standard VITA 90
Info Request

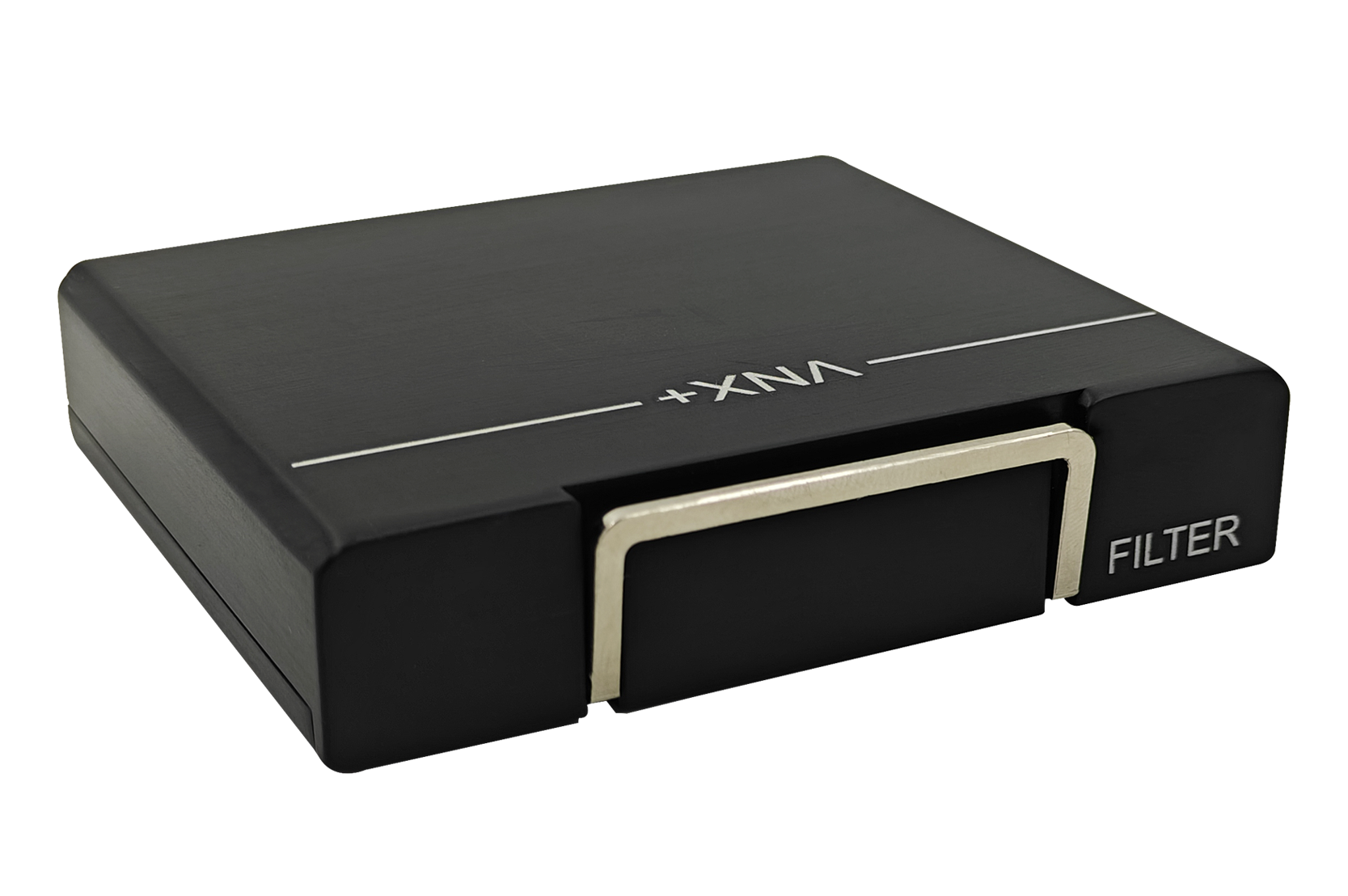

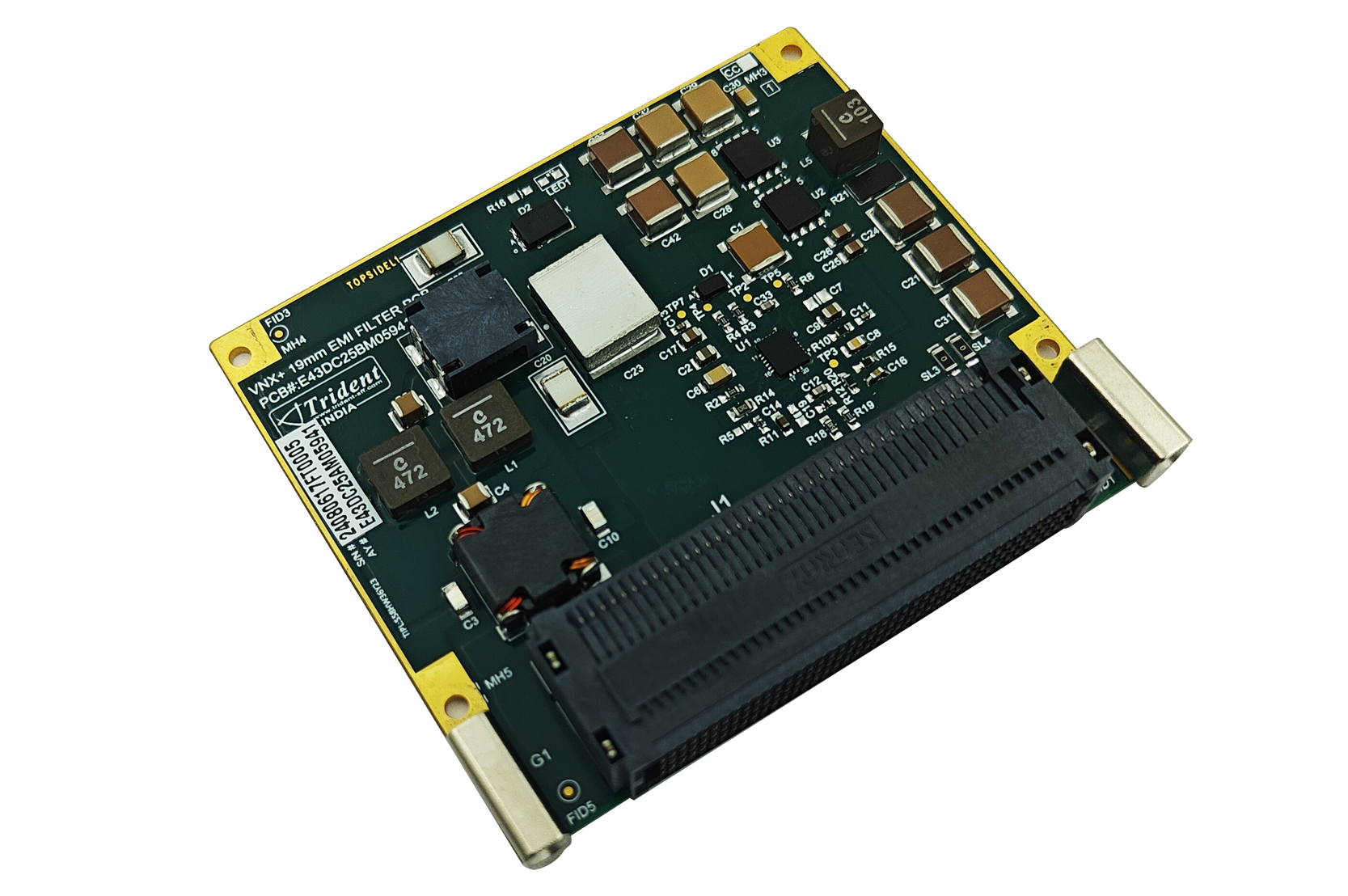

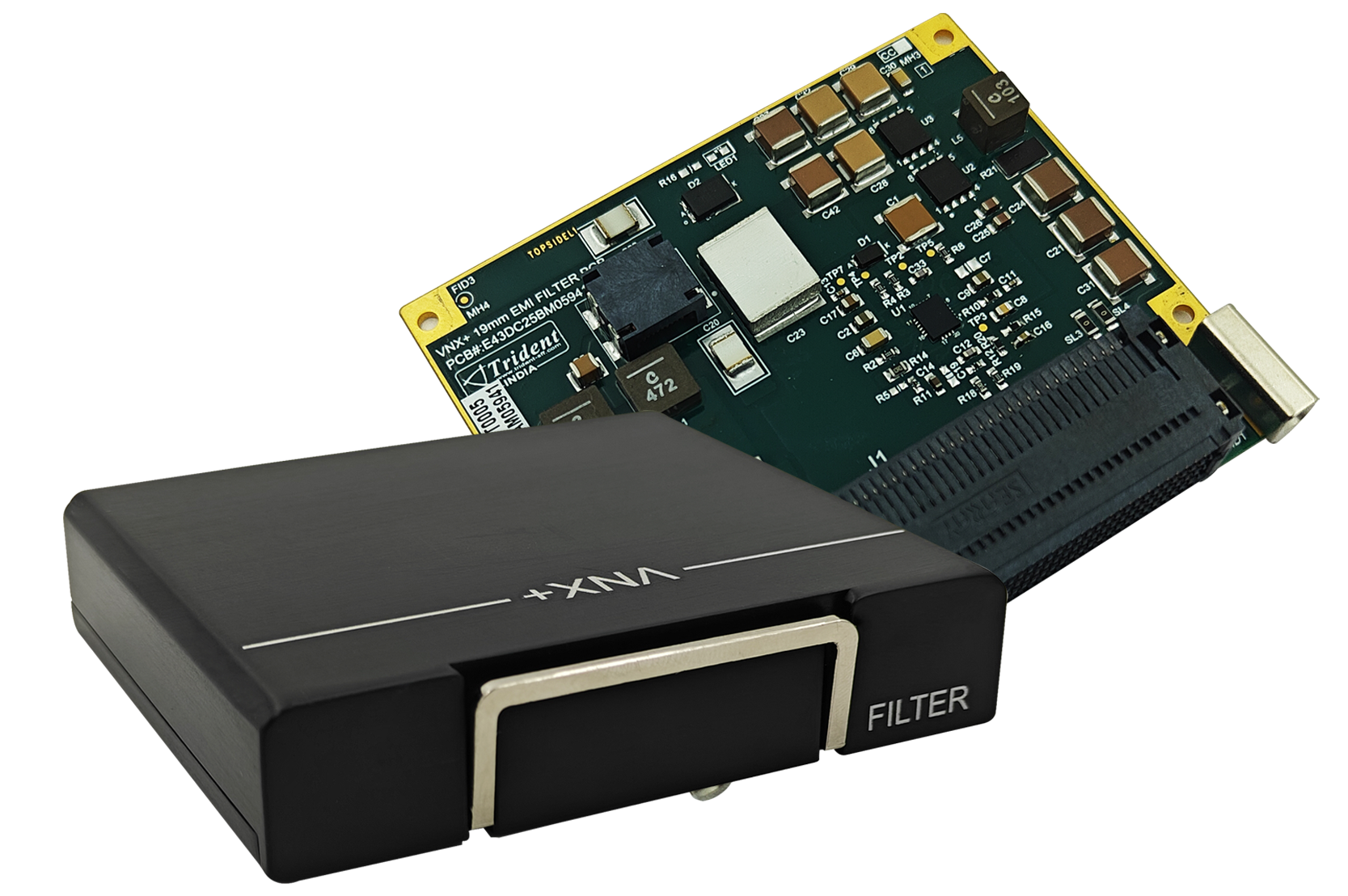

HELIOS FILTER
Model HSx – Helios Series VNX+ EMI AND TRANSIENT FILTER
The VNX+ PSU filter is an essential component specifically designed to ensure the reliable and efficient operation of the
power supply units (PSUs) within the VNX+ System. The PSU filter acts as a protective barrier, preventing unwanted electrical noise and disturbances from reaching the power supply units, thereby safeguarding the sensitive electronics and components of the VNX+ system.
By filtering out potential electrical interferences such as electromagnetic radiation or voltage spikes, the VNX+ PSU filter helps maintain the stability and integrity of the power supply, minimizing the risk of power-related issues that could impact the performance and reliability of the storage system. This filtering mechanism plays a crucial role in maintaining a clean and consistent power supply to the VNX+ system, contributing to its overall operational efficiency and data integrity.
Technical Specification
- Voltage Range: 12VDC to +36VDC (+28VDC Nominal)
- Protection: Reverse, Transient & Over voltage
- VITA Standard: VITA 90
- Dimensions: 89x79x19 (LxHxW in mm)
