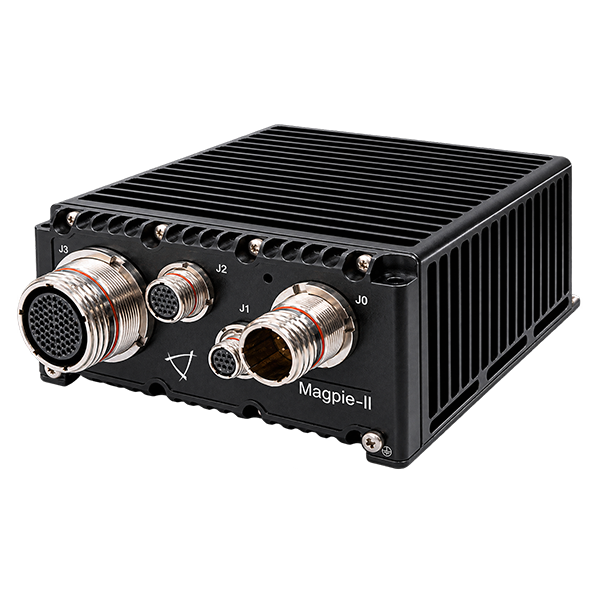

Magpie II
Micro Embedded Computer
Magpie II – R
Configurable Micro SFF Embedded Computer with 13th Gen Intel® Core™ i7
The Magpie II R, is a micro-rugged, lightweight SFF platform powered by the Intel® Core™ 1365URE processor. Built on open COM Express (COMe) architecture, it delivers high performance, efficiency, and reliability with optimized SWaP and COTS compliance.
Technical Specification
- Processor - Intel® Core™ i7-1365URE 2P/8E, 1.70 GHz series (13th Gen)
- Memory - 32GB (Max. 64GB) Onboard LPDDR5
- Storage - up to 1980GB with M.2 SATA / NVME Interface
- Integrated Graphics - Intel® Iris® Xe Graphics
- Dimensions - 130x60x145 mm / 5.12×2.36×5.71 inches
- Weight (Standard) - ≤1.3 Kg / ≤2.9 lbs
- Power Input - 28VDC, <50W Watts
(*Configuration dependent without expansion boards) - Cooling - Conduction Cooled
Info Request
Magpie II – T
Configurable Micro SFF Embedded Computer with 11th Gen Intel® Core™ i7
The Magpie II T, is a micro, lightweight rugged SFF application-ready platform built on open COM Express (COMe) architecture. Powered by high-performance Intel® Core™ i7 Tiger Lake processors, it delivers reliable computing performance for demanding defense and aerospace embedded applications.
Technical Specification
- Processor - Intel® Core™ i7-1185GRE 4C, 2.8 GHz series (11th Gen)
- Memory - 32GB (Max. 64GB) SO-DIMM DDR4
- Storage - up to 1980GB with M.2 SATA / NVME Interface
- Integrated Graphics - Intel® Iris® Xe Graphics
- Dimensions - 130x60x145 mm / 5.12×2.36×5.71 inches
- Weight (Standard) - ≤1.3 Kg / ≤2.9 lbs
- Power Input - 28VDC, <50W Watts
(*Configuration dependent without expansion boards) - Cooling - Conduction Cooled
