Magpie - I
Configurable Micro SFF Embedded Computer

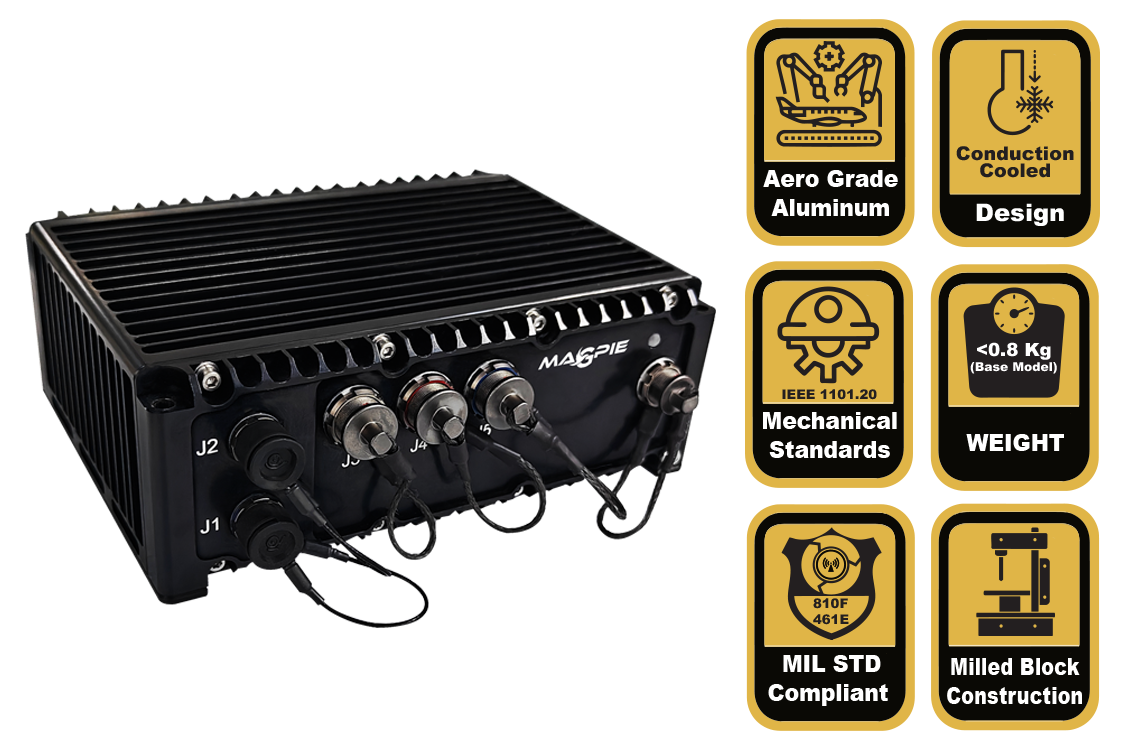

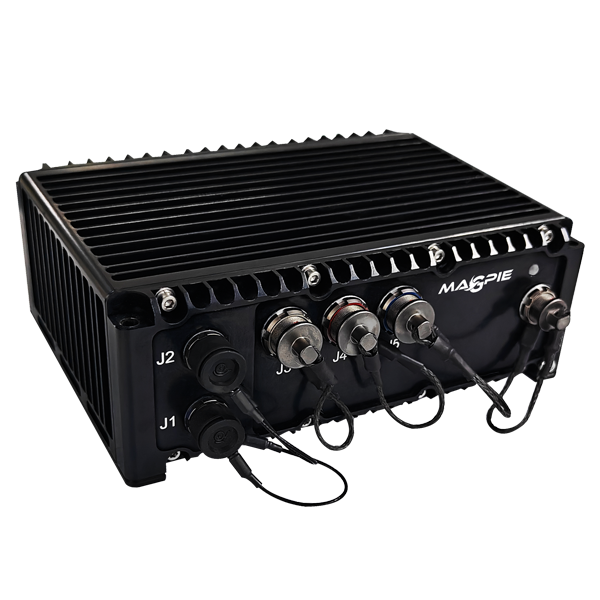

The Magpie-I is a robust small form factor (SFF) computer system designed specifically for the avionic, space, military, and rugged industrial sectors. The system offers the best utilization of Size, Weight and Power (SWaP) in the industry, and strictly adheres to Commercial Off the Shelf (COTS). Though its size is small, the Magpie-I is mighty.



Technical Specification

Magpie - I : Intel® Atom





Magpie - I - Intel® Atom<

  • CPU: Intel Atom® x6425RE 1.9GHz (4 Core) or x6414RE 1.5GHz (4 Core)
  • Memory: Upto 16 GB LPDDR4
  • Storage: 128GB to 512GB (MLC / SLC)
  • Video: 1x Display Port
  • I/O (through ODU Connectors / Circular Connectors):
    • 1x GigE,
    • 1x USB 3.0, 2x USB 2.0,
    • 4x Serial (RS232 / 422 /485)
    • 1x Audio; 4x GPIO
  • Expansion: 1x mPCIe + 2x mPCIe / Acropack® sites
  • Dimensions: 150 x 110 x 54 in mm
  • Weight: <0.8 Kg (Base Model)
  • Power: 28 VDC @ 15-20 Watts (Configuration dependent without expansion boards)
  • Operating Temp: -40°C to +71°C; Storage Temp: -40°C to +85°C (Configuration dependent)
  • MIL-STD-810F, MIL-STD-461F, MIL-STD-704F/1275D
  • OS: Linux, Windows

For Order Configuration or Part Number Email Us - info@trident-sff.com
