Falcon is a rugged small form factor (SFF) computer system, specifically tailored for the avionic, military and rugged industrial market. The system offers the best utilization of Size, Weight and Power (SWaP) in the industry, and strictly adheres to Commercial Off the Shelf (COTS) standards in the industry. Though its size is small, the Falcon II is mighty.
The versatile Falcon may be configured with the latest high performance computer and graphics engines, as well as the best SWaP optimized, low power, System on Chip (SoC) processors; and every solution in between.
The Falcon can support all I/O typically needed in the targeted applications, including MIL-STD-1553B, ARINC-429, AS-5643 MIL Firewire, Video Graphics, Video Frame Capture, RS-232/422/485, Fibre Channel, GigE and 10GigE, Analog and Discrete signals, and FPGA / GPGPU processors, etc. The I/O can be XMC or MiniPCIe, including Acromag’s® revolutionary “Plug and Play” AcroPack. There are additional options for Inertial Measurement and Navigation, GPS, Wi-Fi and Cellular Modem functions.
Technical Specification

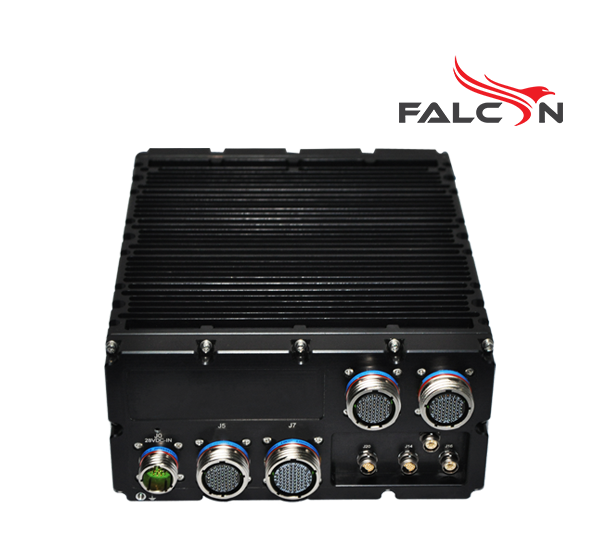

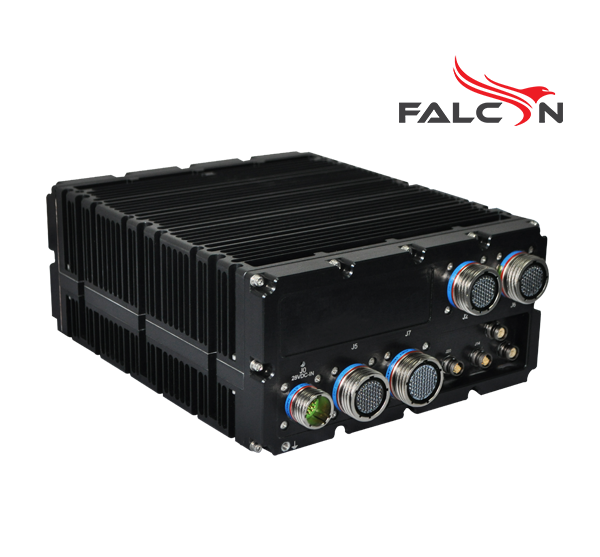

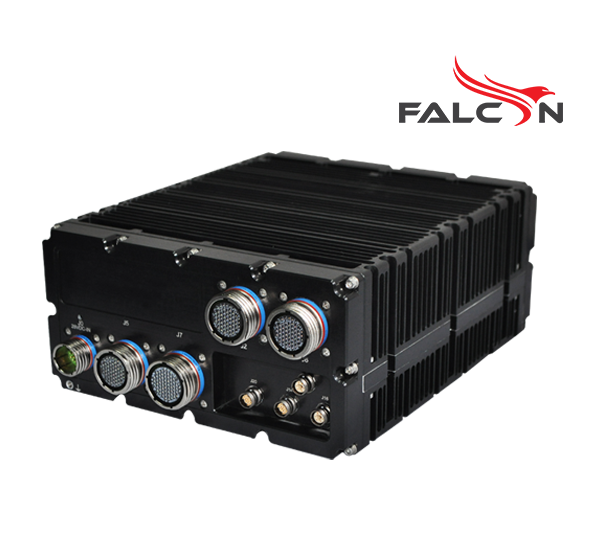

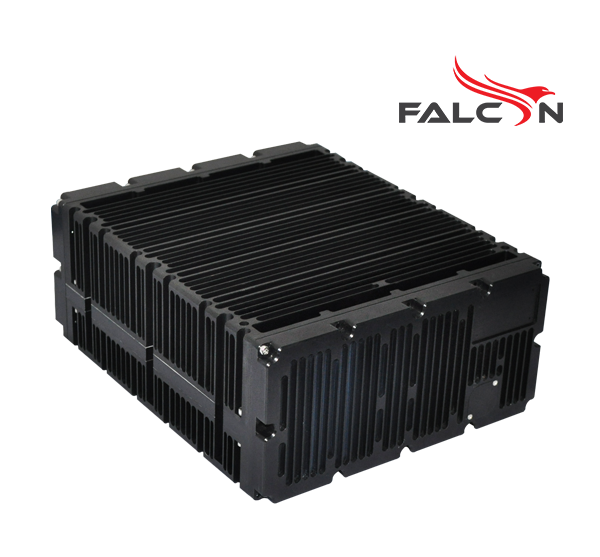

Falcon II with Advanced Features
- CPU: Intel Core i7/ Xeon E3 Processors 9th Generation or latest
- Cores: 4 or 6 Cores
- Memory:up to 64 GB DDR4 RAM (with or without ECC)
- Storage: up to 1.9TB with M.2 Interface
- Integrated Graphics: Intel UHD Graphics Controller
- Video Outputs: 2 x Display Ports
- I/O’s:
- 2 x 10G Ethernet (Optional, Copper or Fiber)
- 2 x 1 Gigabit Ethernet (PoE+ Option)
- 2 x USB 3.0, 2 x USB 2.0
- 1 x HD AUDIO
- 4 x RS232 (TX/RX)/RS422/RS485
- 1 x RS232 (TX/RX- Console)
- 8 x GPIOs
- I/O’s Expansion
- 4 x MiniPCIe / AcroPack Sites (Gen 3 PCIe)
- 1 x XMC Site (x8 Gen 3 PCIe), VITA 42 Compliant
- Security: TPM 2.0 (optional)
- Dimensions: 217mm x 260mm x 105mm
- Weight: ≤ 4.3 to 4.9 Kgs. (Configuration Dependent)
- Connectors: MIL-Circular
- Storage Expansion - Option: 2 x SATA -III SSD Mass Storage Drive (with optional Secure Erase or Zeroize Function)
- Health Monitor: System Health Monitor & Control (Optional)
- Power: 28 VDC @ 40-100 Watts (Configuration Dependent)
- Operating Temp: -40°C to +55 °C, up to +71°C (Depending on Thermal Load)
- Storage Temp: -40°C to +85 °C
- Environmental: MIL-STD-810H
- EMI: MIL-STD-461G
- Power: MIL-STD-704F/MIL-STD-1275E
- Cooling: Fanless Conduction Cooled
- Operating System Support: Windows 10, Linux & VxWorks (on request)
*Note: Various Configuration & Build Options are available, contact us for details.

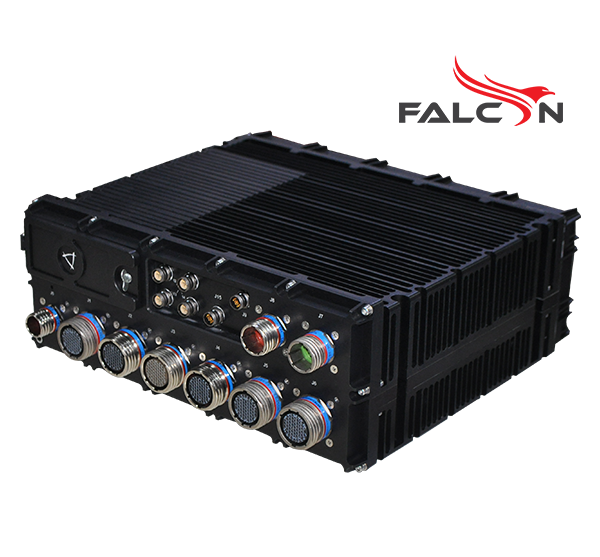

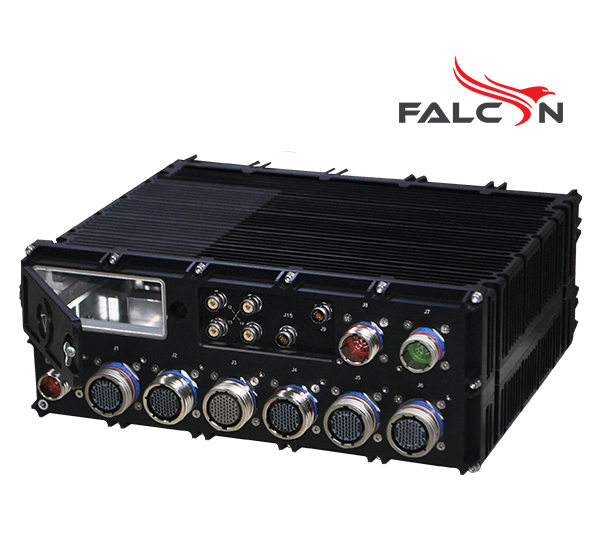

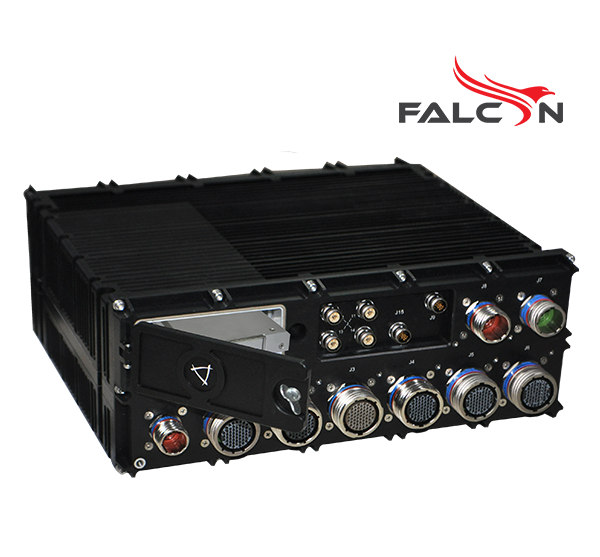

Falcon III
- CPU: Intel Core i7/ Xeon E3 Processors 9th Generation or latest
- Memory: up to 64 GB DDR4 RAM
- Storage: up to 1.9TB through M.2 (SATA)
- Integrated Intel UHD Graphics Controller
- Video Outputs: 2 x Display Ports
- I/O’s:
- 2 x 10G Ethernet (Optional, Copper or Fiber)
- 2 x Gigabit Ethernet
- 2 x USB 3.0, 2 x USB 2.0
- 4 x RS232 / 422 / 485
- 1x Audio IN & 1x Audio OUT
- 8 x GPIOs
- I/O’s Expansion:
- 2 x XMC Sites (Gen 3 PCIe)
- 5 x MiniPCIe / AcroPack Sites (Gen 3 PCIe)
- Removable Storage: 2x 2.5” SSD – SATA III Drive
- Security: TPM 2.0 (optional)
- Dimensions: 300x115x270mm
- Weight: ˂ 8KG including 5 x mPCIe & 2 x XMC (Configuration Dependent)
- Connectors: MIL-Circular
- Health Monitor: System Health Monitor & Control (Optional)
- Power: 28 VDC @ 35-100W (Configuration Dependent)
- Operating Temp: -40°C to +55 °C, up to +71°C (Depending on Thermal Load)
- Storage Temp: -40°C to +85 °C
- Environmental: MIL- STD-810H
- EMI: MIL- STD-461G
- EMI: MIL-STD-704F/MIL-STD-1275E
- Cooling: Fanless Conduction Cooled
- Operating System Support: Windows 10, Linux & VxWorks
